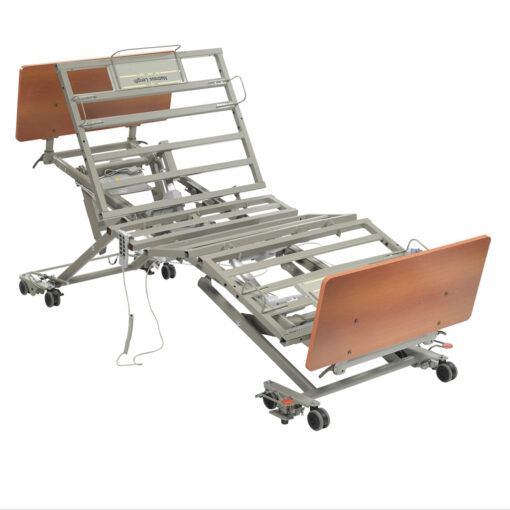

Prime Care Bed Model P703
Specifications
- Bed Height Range - 7" - 30"
- Bed Length Range - 76", 80" or 84"Bed Width - 36"
- Unit Dimensions - 38.5" (w) x 85.25" (L) x 8" (H)
- Warranty - Lifetime on Welds; 15 Year on Frame; 5 years on Electrical
- Weight - 205 lbs.
- Weight Capacity - Accommodate up to 550 lbs. Maximum Resident Weight 500 lbs.
- Bed Height Min w casters - 7"
- Bed Height Max w casters - 30"
Features
- 550 lbs. weight capacity, Resident Weight 500 lbs
- 7" to 30" height range
- Optional integrated width adjusts to 39" - 42" (Figure A)
- Integrated 76", 80" and 84" sleep surface length (Figure B)
- Two way Red/Green color coded floor lock system (Figure C)
- Eight (8) Function Handheld Pendant Control
- Auto Contour
- 4 DC Motors Synchronized Hi/Lo control system keeps bed level
- Four sealed bearings secured in "G" track
- IV pole holders
- Extended Heel Lift
- Eight 3" Heavy Duty casters roll at any height
- Fixed adjustable wall bumper (Figure D)
- Options:
- > Staff Control with Trend/Reverse Trend and Cardiac Chair (Figure E)
- > 88" length Extension (Figure F)
- > Deluxe Assist Rails, Assist Bars
- > Bed ends, Six styles and twelve wood grain laminate colors
- > Battery Back-up, Bed Transporter, Trapeze - Battery Back-up (P703-BBK), Bed Transporter (P903TRP)
